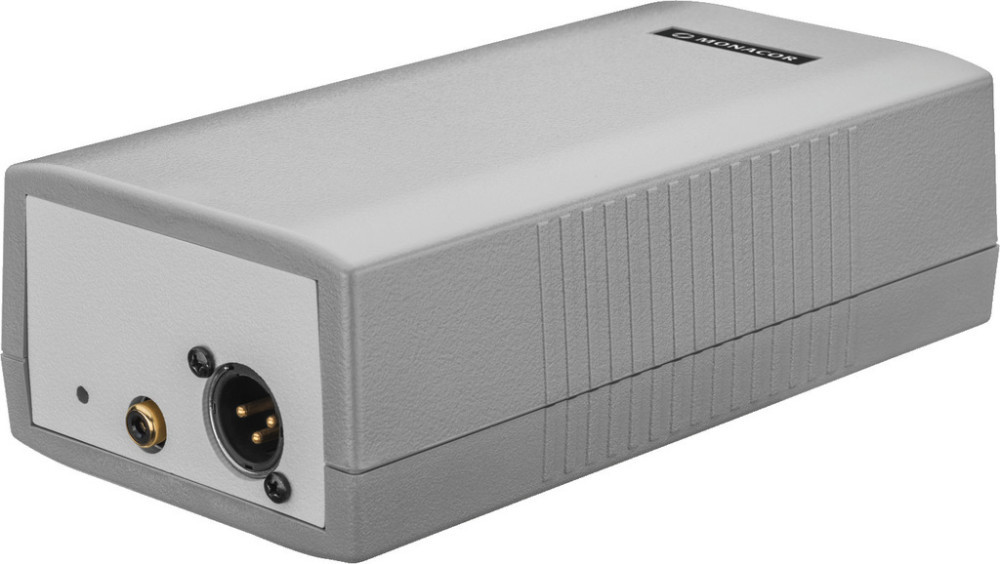

100 V transformer,
for connecting a 100 V audio signal source to devices with line input.
- Adjustable line output level (0-5.6 V at 100 V input voltage), can be switched internally for other output voltages
- 100 V input with plug-in screw terminal
- Balanced XLR output, impedance: 1 kΩ, XLR panel plug
- RCA output
- Insulated plastic housing
- Galvanically isolated input and output
- Dimensions: 100 x 60 x 190 mm
- Weight: 625 g
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
