Datavideo iCAST mini videokeverő

• Részletek

Részletek

Video Standard

4K & HD

Video Format

Input:
3840x2160p: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50, 720p: 60/59.94/50
525i59.94 NTSC, 625i50 PAL

Output:
HDMI
3840x2160p: 30/29.97/25
1080p: 60/59.94/50/30/29.97/25/24/23.98
UVC
3840x2160p: 30/29.97/25
1080p60/59.94/50/30/29.97/25
720p60/59.94/50

Video Processing

4K, 2K/30 4:4:4, 8bit

Input Routable / Crosspoint

N/A

Video Input

2 x HDMI 1.4

Mix HD & SD Source

N/A

Computer Graphic Interface

2 via HDMI

Video Output

1 x HDMI 1.4
1 x USB 3.0 Type C (UVC)

Down-converted Output

Yes

Built-in Multi-view Monitoring Out

N/A

Analogue Audio Input

2 x 3 Pin XLR / 1/4” (6.3mm) Combo Socket

Analogue Audio Output

1 x Stereo RCA set (L/R)
1 x Stereo headphone

Digital Embedded Audio Support

Input 2 channels, Output 2 channels

Audio Delay Calibration

Up to 170ms

A+V Switching

Yes

Chromakey

N/A

Title Creator

N/A

USK

N/A

DSK

N/A

Picture in Picture

1

Logo Insertion

N/A

Still Store

N/A

Effects

Cut

Transition Preview

N/A

Sync / Reference In/Out

N/A

Tally Output

N/A

PC Remote Control

N/A

Camera Control

DVIP/ RS-422/ RS-232

Built-in Audio Mixer

Yes

Storage

N/A

Recording File System

N/A

Recording File Format

N/A

Video Encode

N/A

Audio Encode

N/A

Streaming Protocol

N/A

Firmware Update

USB

Special Features

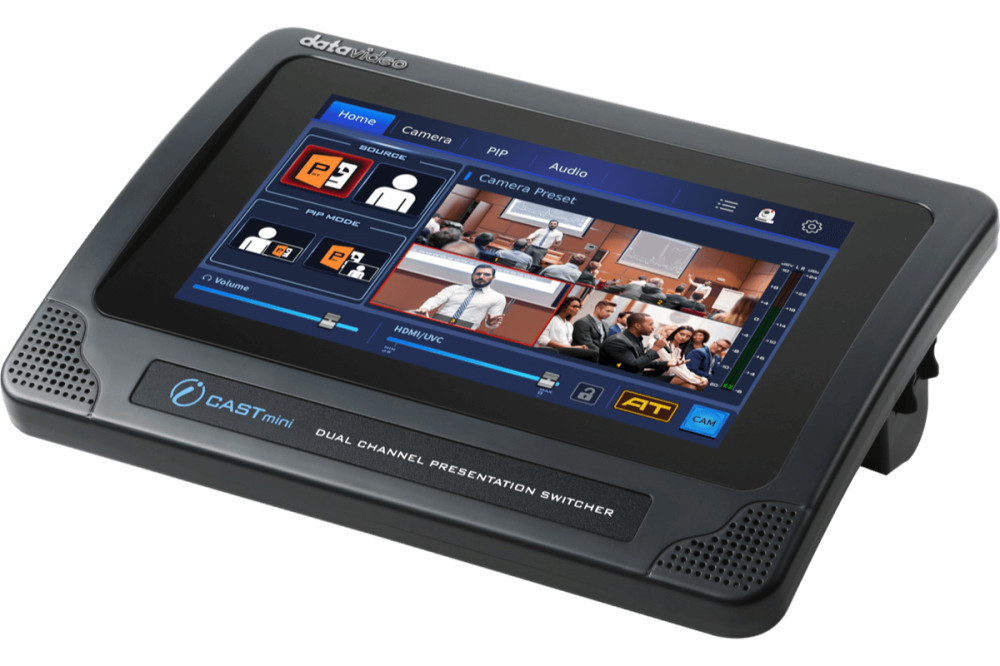

7" Touchscreen Display

Chassis

Unibody

Dimension (LxWxH)

220 x 154 x 75mm

Weight

1.1 kg

Power

DC 12V 18.7W

Operating Temp. Range

0~40 °C

What's in the Box

1 x iCast MINI product
1 x AD Switch DC 12V with AC Cord
